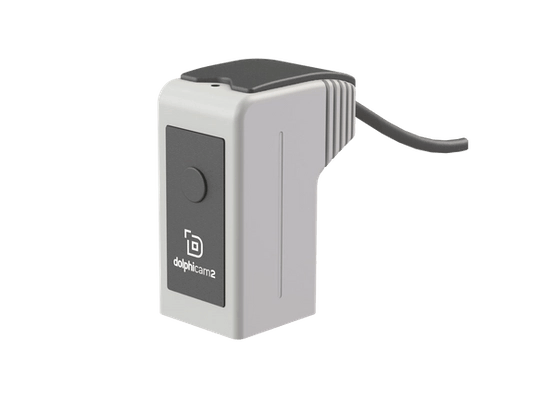

dolphitech dolphicam2 5MHz Transducer

The 5 MHz Transducer module (TRM) sits at the middle of the dolphitech TRM range and is a fantastic all-rounder, well-suited to both metallic and composite applications. It provides superior resolution while maintaining good penetration through a wide variety of materials . Applications include heavy industry, aerospace and automotive. Typical component thicknesses are around 1-30mm*.

* Get in touch for specific material and penetration information as it can vary.

Technical details:

  • Transducer Type: Matrix (2D-array)
  • Transducer Elements: 128×128 (16,384)
  • Transducer Aperture: 32 x 32 mm
  • Element Pitch: 250 μm
  • Center Frequency: 5 MHz

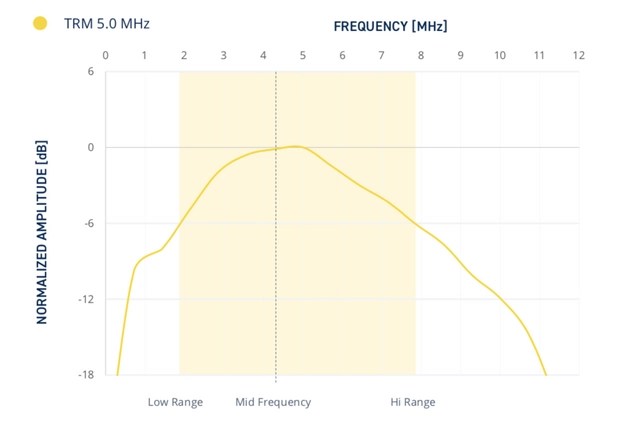

  • -6dB Frequency Bandwidth: 120%
  • Sample Rate: 50 MHz
  • Acquisition Rate A-scans: 100,000 – 500,000 datasets per second
  • Acquisition Rate 3D: 10-40 3D volumes per second

Size and weight:

  • Width: 40mm / 1.6 inch
  • Length: 40mm / 1.6 inch
  • Height: 84mm / 3.4 inch
  • Weight: 265 grams (excluding cable and delay line)
