ETher ETi-200 Eddy Current Flaw Detector

Please contact us for pricing

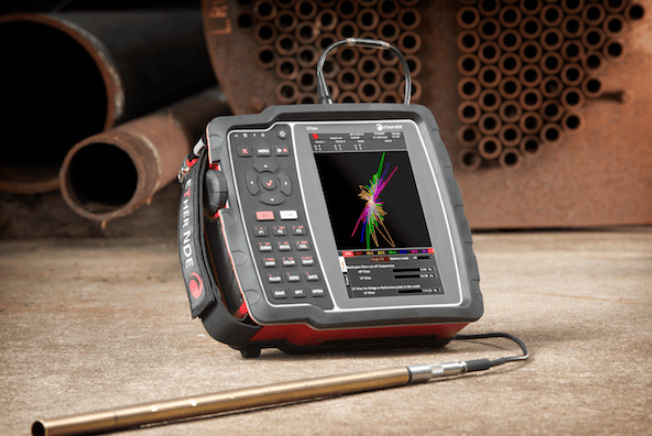

The ETi-200 is an advanced Eddy Current Flaw Detector from ETher NDE. The ETi-200 is designed to offer advanced multi-frequency and multi-channel flaw detection housed in the smallest portable EC package on the market.

Appealing to all sectors within NDT, the ETi-200 allows the Operator to programme not only frequency, but many other advanced functions. With single-Probe operation, the ETi-200 can multiplex eight Channels, making the ETi-200 the most flexible portable unit available. Alternately with two Probes connected the ETi-200 allows any mix of eight channels across two Probes.

The ETi-200 not only excels in terms of technology, but has been designed to be rugged enough to cope with some of the on-site environments it will be undoubtedly exposed to. Built with a cast aluminium chassis overlaid with rubber over-moulding meeting IP54 standards, the ETi-200 is built to withstand the harshest of conditions.

As well as offering the Operator advanced technology and protective packaging, the ETi-200 weighs just 2.8kg (6.2lbs) with a compact footprint that has been ergonomically designed with the end-user in mind and providing an adjustable hand-strap and harness attachment points.



The compact size of the ETi-200 does not mean that the screen has been neglected. The ETi-200 boasts an impressive 7” diagonal 800 x 480 pixel colour TFT display. All colours on the display are user-programmable incorporating feature friendly icons and the display can be presented in one, two or four panes.

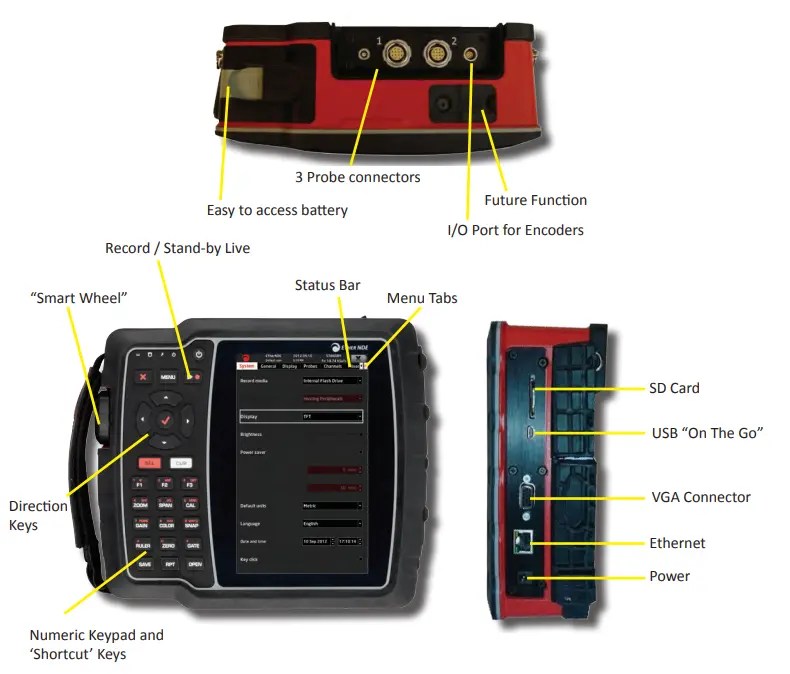

Further technical advantages that the ETi-200 offers include:
  • ALLOWING USB PERIPHERALS (E.G. MEMORY STICK, MOUSE, KEYBOARD)
  • ETHERNET COMMUNICATION FEATURING A FULL-SIZED SD CARD INTERFACE
  • “SMART WHEEL” FOR RAPID NAVIGATION THROUGH THE ETI-200 FEATURES
  • “DIRECT KEYS” TO ACCESS KEY FEATURES QUICKLY AND EASILY
  • EMBEDDED HELP TEXT THROUGHOUT THE ETI-200 MENU
