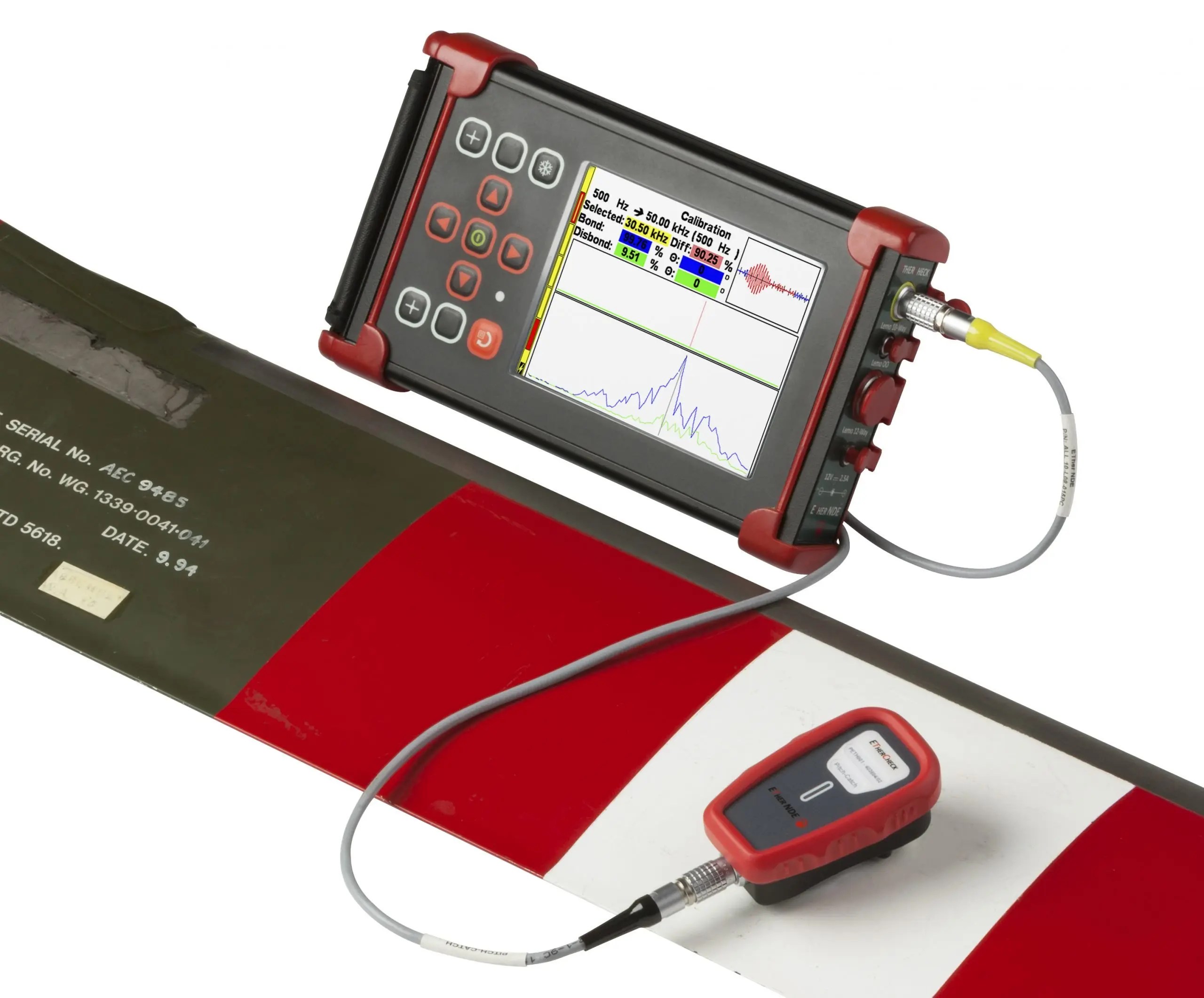

EtherCheck Eddy Current and Bond Testing Flaw Detector

Please contact us for pricing

The ether nde EtherCheck ET/Bond Testing Flaw Detector for non destructive testing (NDT). Designed for NDE on Aerospace specific applications, the EtherCheck offers the very best in Eddy Current and Bond Testing performance in a compact, rugged and lightweight package.

The EtherCheck Flaw Detector is designed and manufactured in the UK and uses industry standard 12-Way Lemo and Co-axial Lemo 00 connectors, offering rotary drive, dual frequncy and conductivity capabilities as standard and also absolute, bridge and reflection probe modes without the need for adapters.



Key Features:
  • Dual Frequency
  • Pitch Catch Bond Testing Mode
  • Rotary Drive As Standard
  • Industry Standard Probe Connectors
  • Large, Crisp Daylight Readable Display
  • User Friendly Interface
  • Up To 10 Hours Battery Life With a Pencil Probe and 7 Hours With a Rotary Drive
Works The Way You Do:

The Ether Check features a daylight-readable 5.7” LCD Colour Full VGA  (640 x 480 pixels) Screen ensuring the Operator has excellent signal resolution and presentation no matter what the working conditions are and with the built-in “flip” function works equally well for left or right-handed users.

Lightweight, rugged and easy to use:

Lightweight at 1.2kg (2.6 lbs.) and housed in a rugged metal casing, the EtherCheck offers up to ten hours battery life, easy to navigate menu systems and great EC performance.

The EtherCheck Plus features a simple “single-level” menu system. In addition, any menu item can be added to the “Quick Menu” sidebar with its own easily recognisable Icon enabling faster adjustments during the inspection process.

The EtherCheck Plus has been built with operator-selectable “soft keys”. Every menu item has its own easily recognisable icon. There are four soft key positions for operator selectable icons for frequently used functions and a fifth position for the last menu function used. Each saved instrument setting can be associated with a unique, one press set of quick access functions. There are also two front panel hard keys that can also be easily programmed for rapid one press access to instrument functions.

Innovative “Loop” Feature:

“Loop” is a convenient way of capturing a live repetitive signal and then optimizing the instrument settings especially Phase, Gain and Filters in order to simplify the task of optimizing the parameters.

“Guides” Feature:

“Guides” allow the user to display a slide show that can be created easily with commonly used desktop software. The benefit of this feature is that instructions, tutorials and procedures for the inspection can be added to the EtherCheck very quickly and the NDT inspector can easily switch between the Inspection itself and the “Guides” while performing a live test.

Trace Function:

The trace function allows a reference waveform to be stored on the screen and appears along with the graticule behind the live spot. This allows the operator to readily compare the live data with the reference calibration.
